Mini Single-Sided Inspection Machine
Product Application Scope
Suitable for single-sided single-sheet printed products after die-cutting, and can perform defect detection on large waste products with mixed styles (mixed serial numbers) including clothing hang tags, electronic backing cards, blister cards and daily chemical backing cards.
Defect Detection Capabilities
● Conventional single-sided printing defects (ink specks, dirt spots, color difference, insect marks, water droplets, oil droplets)
● Die-cut station defects (die-cut misalignment)
● Variable data defects (1D barcode and 2D QR code reading, duplicate codes, wrong codes, missing codes)
Product Features
Efficient Job Switching: Job switching takes only 1 minute with a simple modeling process and easy operation.
Flexible Layout: Compact body structure with small footprint and excellent expandability.
Reliable Inspection: Stable performance covering various inspection requirements to prevent defective products from delivery.

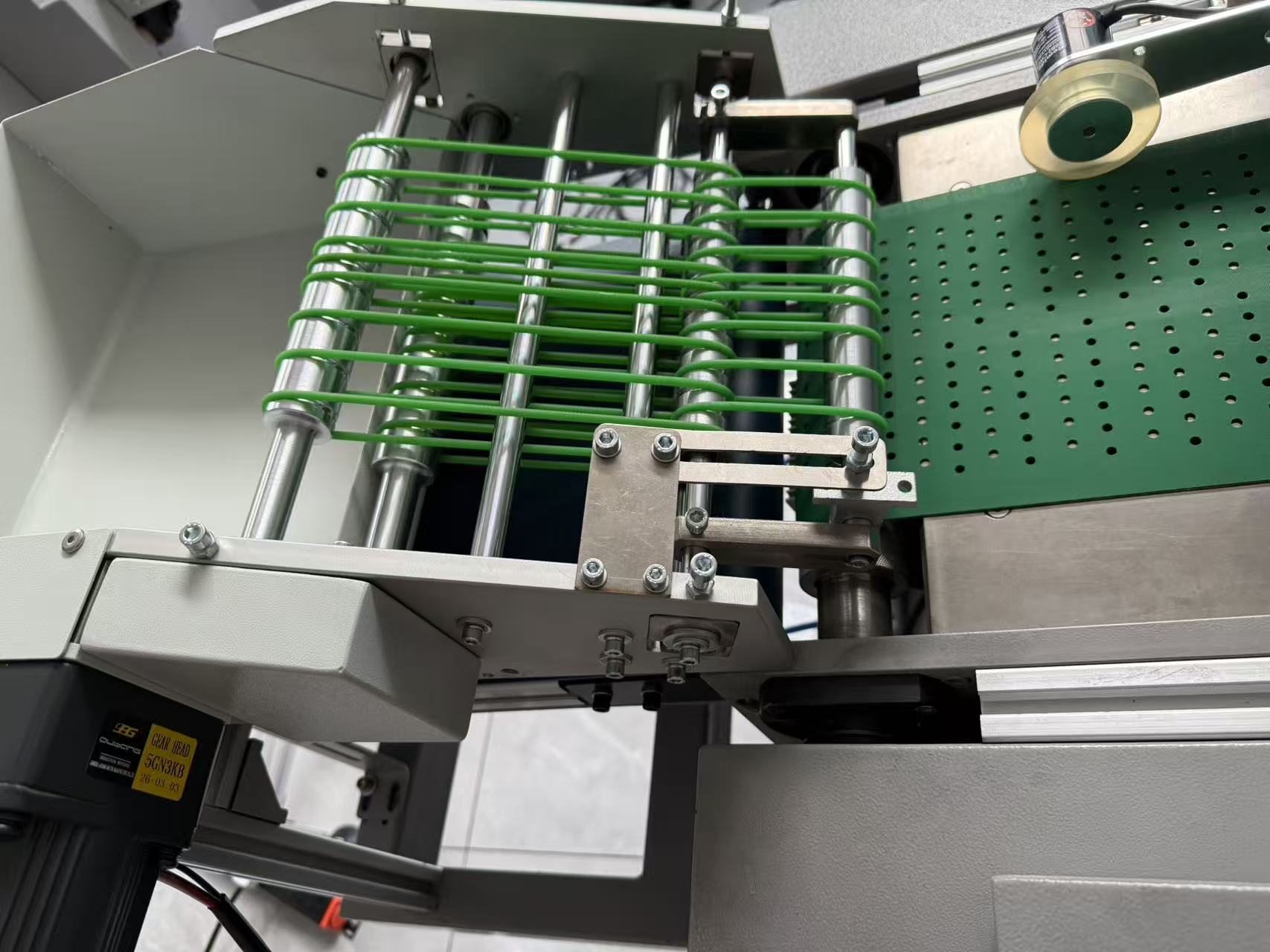

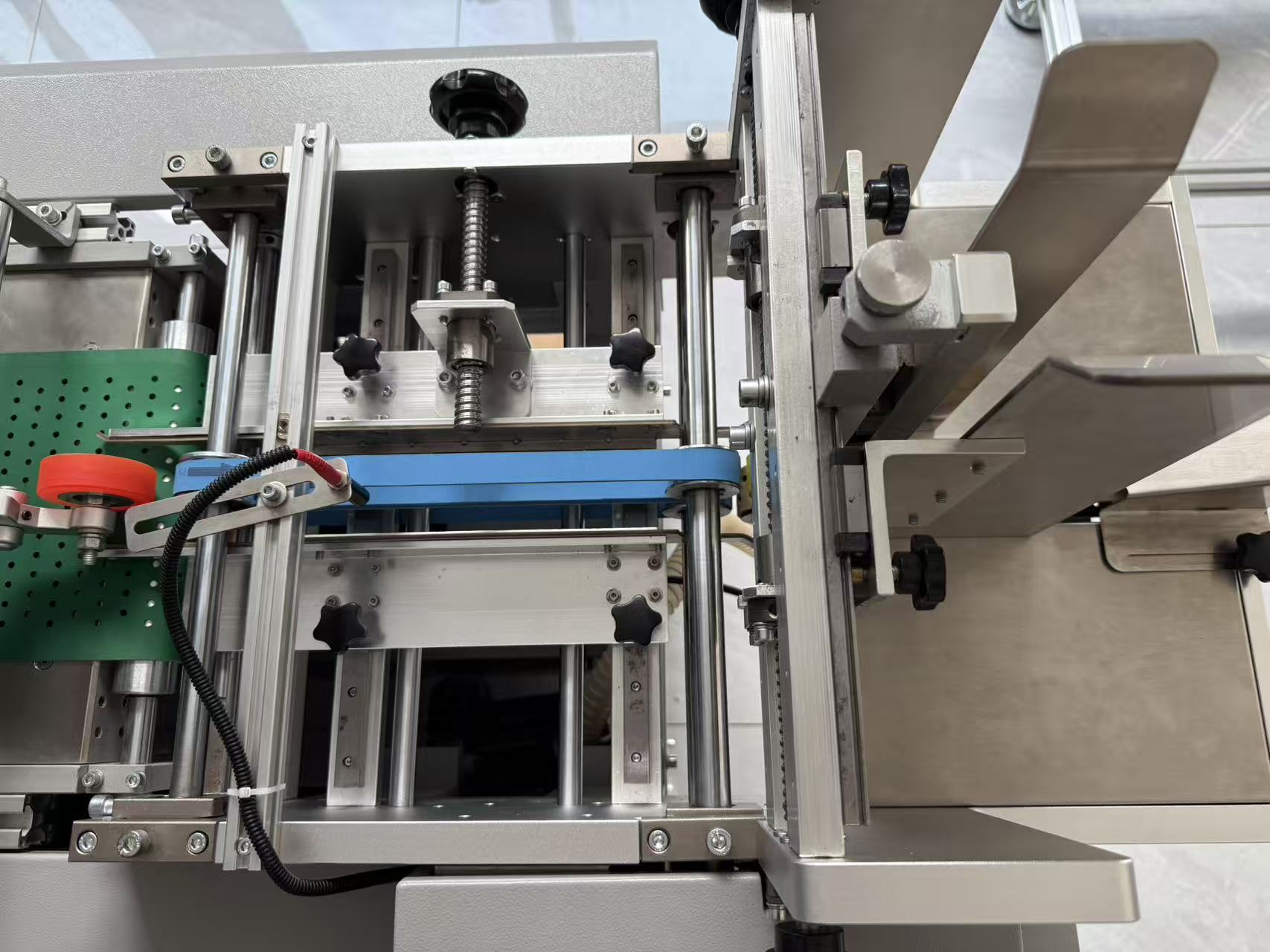

Smooth Operation: Stable paper feeding; full air suction design in the inspection area greatly reduces debugging time.

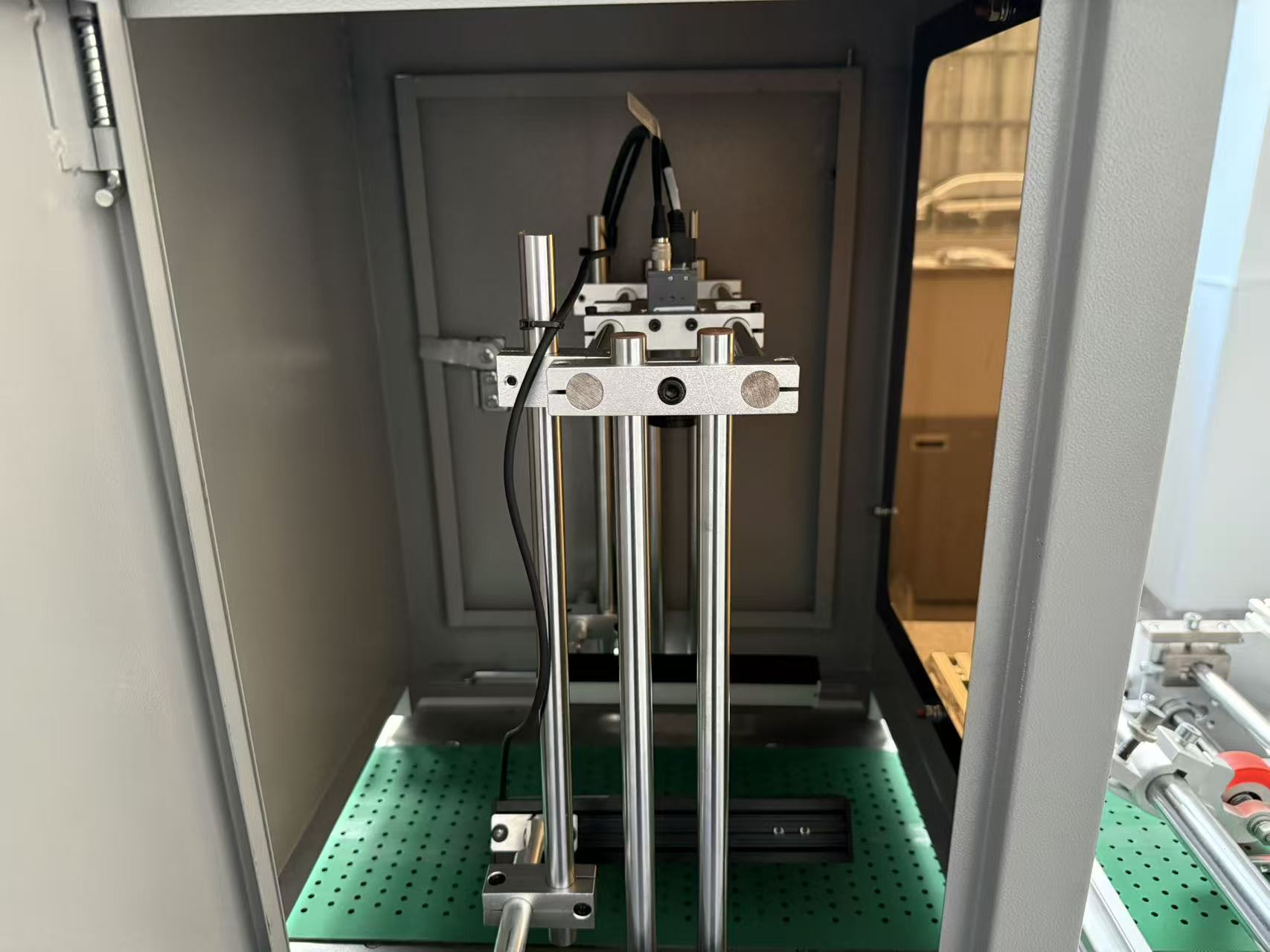

High-Quality Imaging: Equipped with imported industrial cameras, delivering high inspection precision and excellent color reproduction.
Performance Parameters
Item | Functional Parameters |
Maximum Inspection Speed | 80 m/min |
Maximum Paper Feeding Size | 180 mm (Width) * 180 mm (Length) |
Minimum Paper Feeding Size | 40 mm (Width) * 50 mm (Length) |
Maximum Inspection Size | 150 mm (Width) * 150 mm (Length) |
Applicable Paper Basis Weight | 150～400 g/m2 |
Imaging Precision (mm) | Front Direct Lighting Station: 0.1 mm * 0.1 mm |
Conventional Defect Inspection (Defect Contrast Over Grade 20) | 1. Minimum detectable area for missing print, dirt spots and other defects: Front side ≥0.2 mm2 2. Overprint deviation inspection: ≥0.2 mm 3. Die-cut deviation inspection: ≥0.2 mm 4. Scratches: Horizontal or vertical scratches with vertical width over 0.2 mm or horizontal width over 0.15 mm, length over 15 mm and contrast over Grade 20 can be detected |
Overall Floor Dimension | Single friction feeder + single waste rejecting unit + fish-scale paper collector: 2250 mm*850 mm*160 mm |
Mechanical Weight | 0.7 Ton |
Total Power Consumption | 3 KW |
